rugged windows tablet

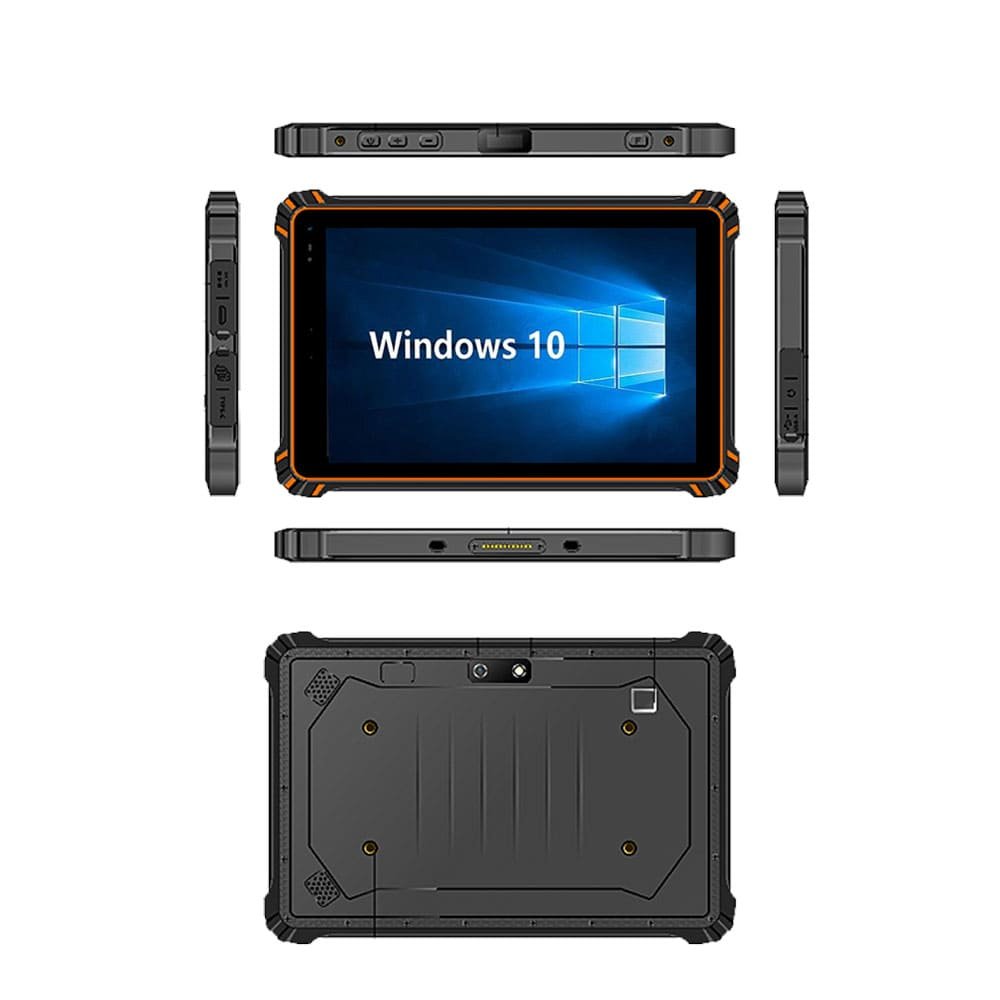

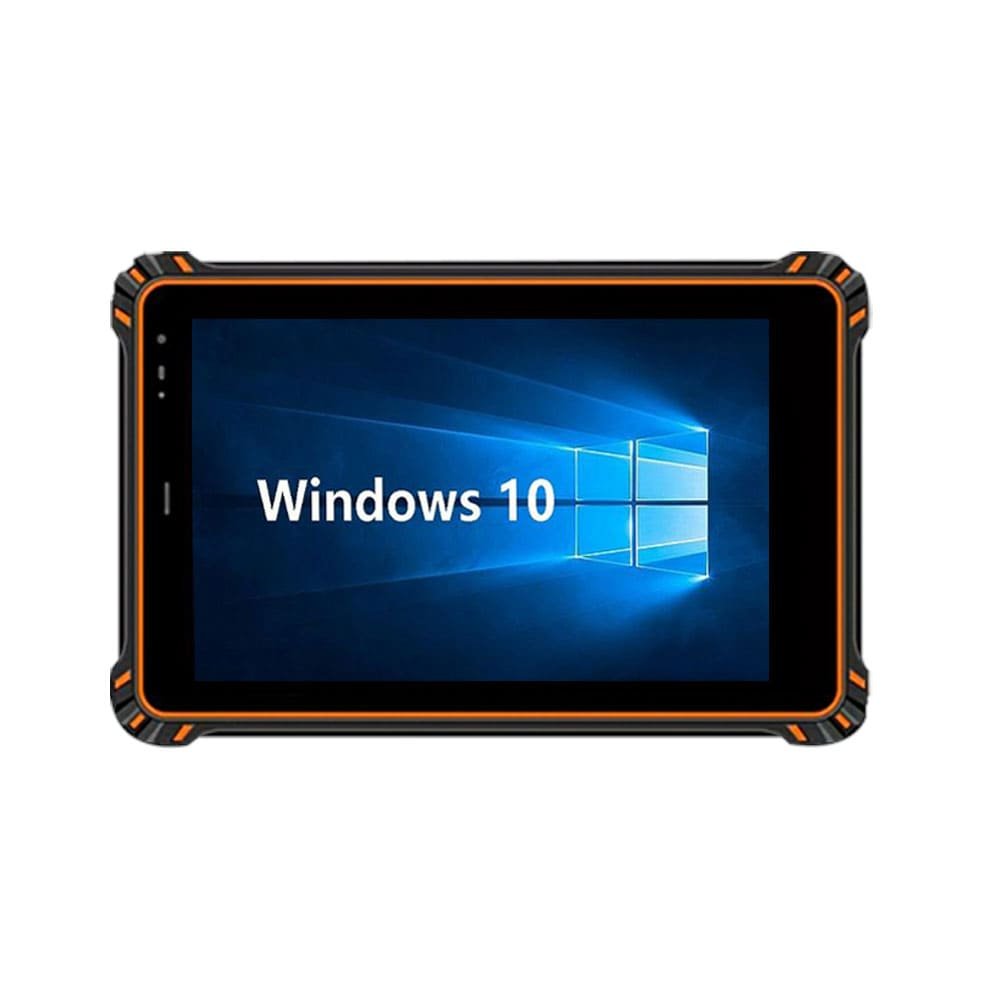

10NF-Rugged Windows Tablet
CPT-10NF Rugged Windows Tablet is engineered for demanding environments, featuring a reinforced frame that complies with MIL-STD-810G military standards and boasts an IP65 rating for water and dust resistance, making it ideal for military, industrial, and field applications.
- Size: 7"
- IP68 Waterproof & Dustproof
- 10000MAH Long Battery Life
- Dimension:277.48*179*21.5
- Sunlight Readable Capacitive
- Fingerprint Capture, NFC GPS, 5D, 2D Scanner Head
Rugged Windows Tablet Spec
Spec | Standard | Option | |
Physical Spec | Dimension | 277.48*179*21.5 |
|
Color | Black | Could Customize color | |
Platform Spec |
CPU | Intel® Celeron ® N5100 processor |
|
RAM | 8GB |
| |
ROM | 128GB | 256GB | |
OS | Windows 10 Home |
| |
Battery | 6000 mAh，7.6 v lithium- ion battery endurance 8h（1080P Video + LCD 50% Brightness） |
| |
Indicator | *1 |
| |
Camera | Front Camera：5MP， |
| |
Rear Camera：8MP |
| ||
2G/3G/4G | / | LTE FDD: B1/B3/B5/B7/B8/B20； LTE TDD: B38/B40/B41； WCDMA: B1/B5/B8； GSM: B3/B8 | |
Location | U-Blox M7N GPS， |
| |
WIFI | WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G |
| |
Bluetooth | Bluetooth 4.0 (BLE) class1 transmission range：10m |
| |
Adapter | 12V/4A（DC Port） |
| |
Display | Resolution | 800*1280，10.1 寸 IPS LCD，16:10 |
|
Brightness | 700cd/㎡ |
| |
|
Touch panel |
GT9110P,5 Points Touch/ Max 10Points Touch |
|
Glass | G+G , hardness 6H |
| |
Key | Power | *1 |
|
Volume | *2，Vol+，Vol- |
| |
Self-define key | *2，P-Key |
| |
Voice | Speaker | *2， 1.2W/8Ω， IP67 Water proofing； |
|
Receiver | *1，IP67 Water proofing |
| |
MIC | *2，MIC，IP67 Water proofing |
| |
Port | USB1 | *1，Type-C USB2.0 Support OTG |
|
USB2 | *1，Type-A USB2.0 |
| |
Ethernet | *1，RJ45， 100Mbps |
| |
DC | *1，DC 5V/3A, |
| |
HDMI | *1，Micro HDMI |
| |
Earphone | *1，3.5mm Standard earphone |
| |
Pogo Pin | *1，,12pin USB+ Charging |
| |
SIM 卡 | *1，Standard Micro SIM Slot |
| |
TF 卡 | *1，Max Support 256GB |
| |
Extension Module | NFC | / | 13.56MHZ Support:14443A/14443B/15693 |
HF RFID | / | 13.56MHZ Support:14443A/14443B/15693 | |
UHF RFID | / | PR9200，Read distance：1.5M-3M: Read distance 2：5M-8M | |
ID | / | Standard 2th Generation | |
Fingerprint |
/ | 1: ordinary industrial fingerprint 2: Fingerprint authentication by the Ministry of Public Security 3: FBI certified fingerprint | |
1D Scanner | / | Zebra SE655 | |
2D Scanner | / | Newland N1 | |
Reliability | IP Protection Level | IP67 |
|
| Drop test | 1.2M，Cement floor |
|
Working temperature | -20℃~60℃ |
| |
Storage temperature | -30℃~70℃ |
| |
Certification | CE | OK |
|
RHOS2.0 | OK |
| |
IEC62133 | OK |
| |
Air and sea survey report | OK |
| |
IP67 | OK |
| |
GMS | OK |
| |
MSDS | Ok |
| |
UN38.3 | Ok |
| |
Accessory | Hand strap | / | Option |
Mounted bracket | / | Option | |
Standby Battery | / | Option | |
Docking | / | Option | |
Type-C Cable | / | Option | |
OTG Cable | / | Option |
A Rugged Windows Tablet is a durable computing device designed to withstand harsh environments, featuring reinforced casings and compliance with standards like MIL-STD-810G and IP65.
Rugged Windows Tablets are commonly used in industries such as construction, manufacturing, field services, and military operations due to their durability and reliability.
Unlike regular tablets, Rugged Windows Tablets are built to endure extreme conditions, offering features like shock resistance, water and dust protection, and extended temperature ranges.
Yes, many Rugged Windows Tablets offer customization options such as barcode scanners, RFID readers, GPS modules, and various connectivity features to suit specific industry needs.
